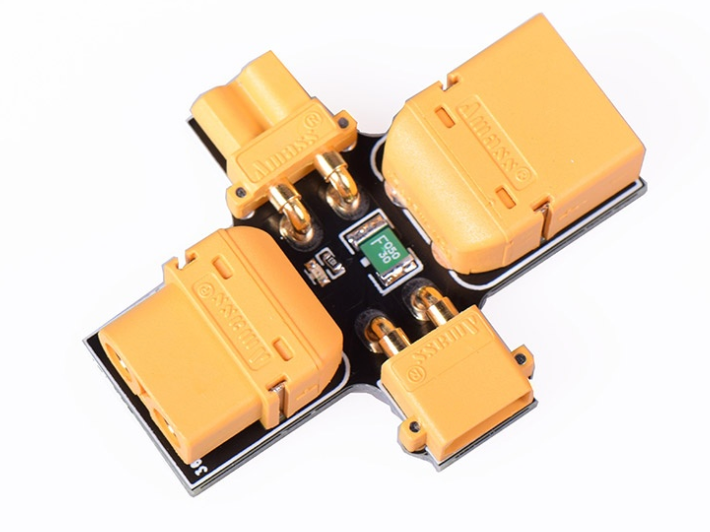

Smoke Stopper

This board is designed to avoid imminent disaster with this Smoke Stopper: A self-healing / re-settable fuse in line of the power going to your quad. The red LED lights up in normal mode. If the battery is plugged in and the red LED light does not light up, it indicates that the output current is too high and the protection is effective.

Specifications:

Connector: XT30 & XT60 (input and output)

Input voltage: 1-6S (3 – 30V)

Trip current: 1.0A

Hold current: 0.5A

Disclaimer: This is just a fuse. Something may still break by the time the fuse trips. It won’t protect against all kinds of damages, but it’s still way better than nothing at all!

Package Includes:

1x JHEMCU Smoke Stopper
