OMG M5 Gyro for 1/24 RC Drift

Sensitivity gain function

1.Adjust the gain  value by transmitter’s sensitivity channel, range from -100% ~ 0 ~ + 100%.

   a. 0 is no gain at all.

   b. -100%/+ 100% is the maximum sensitivity gain.

2. When the gain wire is not used, use the gyroscope's own potentiometer to adjust the gain value.

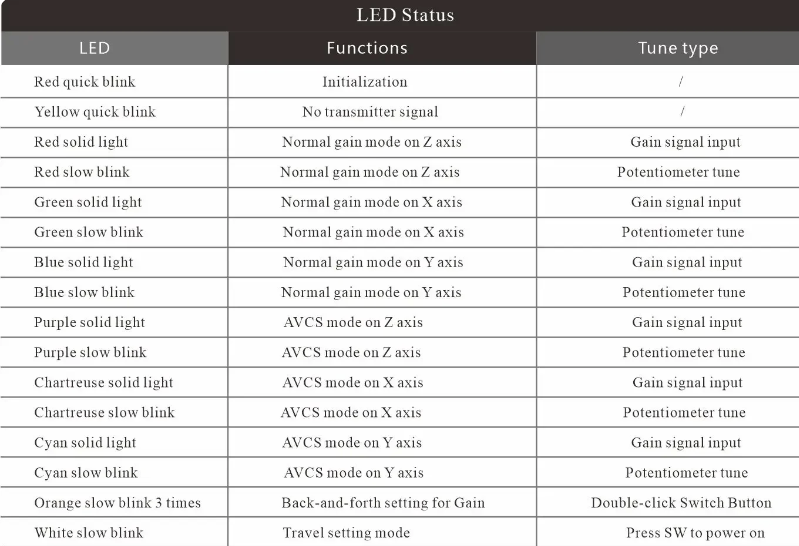

Instruction of Function Switch

1. EPA (Travel setting)

Press  the  “ SW ”  switch  to  power on.  White LED blinks slowly, entering to the servo travel  setting .  Rotate  the   transmitter‘s steering wheel to make servo stop at the

desired position (turn left / turn right). Short  press  “SW”  switch,  then  white LED blinks 2 times  quickly;  red &  green LED  becomes  solid; and  blue  LED blinks slowly. It

means current travel has been saved. Then rotate the  transmitter’s  steering  wheel  to  make  the  servo  stop at the other  desired  position. Short  press the  switch, then

white LED blinks  2  times  quickly,  and  keep  solid light after that. It means current travel  has  been  saved  as well.  2seconds  later, the gyro will automatically enter  into

initialization mode .  Once  the initialization is completed, gyro is ready for use.

2.Reset ( Travel Restore Default Setting)

Press  the  “ SW ”  switch  to  power  on  and  enter  into  the travel setting mode. After pressing and holding the switch for 3 seconds, the  red LED and chartreuse LED starts

to  blink  alternately. 2 seconds  later,  restore  to  default setting. Then it will enter into initialization mode. Once the initialization is completed, the gyro is ready for use.

3.Back-and-forth setting for Gain

After  double-click  SW  button 2 times under the normal working status , the  orange  LED  will slowly blinks 3 times. Then switch-over the Back-and-forth direction of the gain.

4.AVCS mode

Press  the  SW  switch for 2 seconds under the working status, and release  the  switch  after  the  yellow LED blinks 2 times. Switch-over normal mode and AVCS mode.

5.X/Y/Z axis setting

Press and hold the SW switch for 5 seconds under normal working status, and  the  yellow LED blinks  3 times (Please do not release the SW switch  when the yellow  LED blinks

2 times at 2 seconds). Then  release  the SW  switch  and enter into the axis setting mode.

Under  this  mode,  press  the  SW switch and the red LED quickly blinks 2 times and keep solid light. It is the default Z axis. Repress the SW switch  and  switch-over  to  X axis.

The  green  LED  will quickly  blinks  2  times  and  keep  solid  light .  Repress  the  SW switch  and  switch-over  to  Y axis.  The blue LED will keep solid light. If  repress  the  SW

switch, will  switch-over to Z axis again (cycling as this way).If  you  do  not  press  the  SW  switch  after  entering  into the axis setting  mode, the  gyro  will  exit  the setting

mode and be back to normal working mode after the white LED blinks 2 times.The setting sequence of the 3 axis: Z(default)-X-Y-Z...

Note: If  you  do not release  the SW switch after entering the axis setting mode, the gyro will keep in the axis setting mode until you release  the SW switch and the gyro will exit

the setting mode and be back to normal working mode after the white LED blinks 2times.

Input Signal Type

1.If the input period of the analog servo signal is within 10-20MS, the  output  period  of  the  gyroscope  follows  the  input  period.

2.Suitable  for  FUTABA   SBUS2   signal   input  and  servo  3MS period output.

3.Suitable for FUTABA SR signal input and SR output.

4.Suitable  for  SANWA  SSR \ SUR \ SHR  signal  input and  SSR\SUR\SHR output.
