Furitek PYTHON PRO ESC and Cedar Motor

FURITEK team in the past 2 years have been designed and produced several brushless ESCs for mini crawlers with the famous LIZARD line of ESCs.  Being the first FOC-technology ESCs ever being designed and produced for the mini crawlers, the LIZARD ESCs have changed the games for the mini crawlers.  They are super small in size, butter smooth and amazingly powerful.

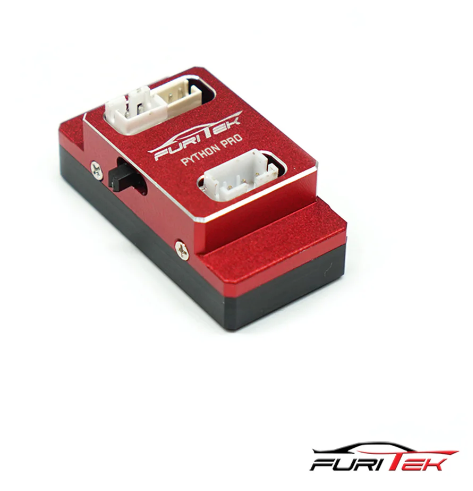

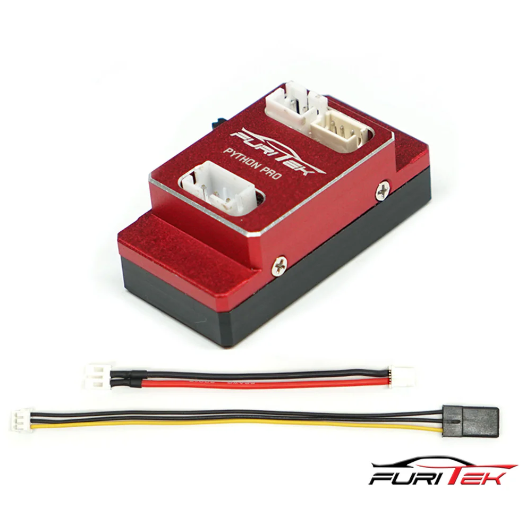

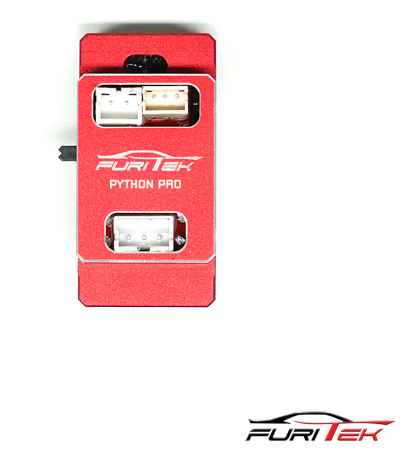

However the team is not stopping; after over 6 months of testing and designing, FURITEK team releases another next evolution of the FURITEK ESCs, the high-end, upper performance line of brushless ESC for mini crawlers.  Introducing the new FURITEK PYTHON brushless ESCs that inherited the awesome features above of the LIZARD ESCs but now with new enclosing case for dust proof and waterproof.  We no longer have to worry about the brownout of the big servos or heavy weight of some modified trucks with huge 5A built-in BEC that can be run at multiple voltage from 5.5V to 7.4V for Python and up to 8.4V for the Python PRO.  We also no longer need to wire a separate bigger BEC for the ESC or running 3-cell lipo power setups.

Features:

- FOC (Field-Orientated control technology)

- Live tunning on Furicar app

- Super slow and ridiculously smooth throttle control

- New firmware algorithm to consistently smooth up the start up to FOC stage

- Work with Brushed/Brushless motors (config via app, default is brushless)

- BIG BEC for power-hungry servos

- Mini size and light weight

- Super easy programming via App on both Android and iOS

- Real-time telemetry up to 10Hz

- BT setup module built-in so no longer a separate wires and BT setup module controlled by Furicar App

- Waterproof and dustproof with an enclosing CNC aluminum case

- Current protection

- FREE lifetime firmware updates

Specifications:

- Supports 2-4S lipo batteries

- BEC: 5.5V/7.4V/8.4V 5A

- Constant current: 40A

- Burst current: 70A

- Built-in power switch

- Dimensions: 1.57x 0.78x 0.6 (inch), 40x20x15 (mm)

- Weight: 14.4g (0.5oz)

Extra requirements:

• A new Two-channel radio system­­

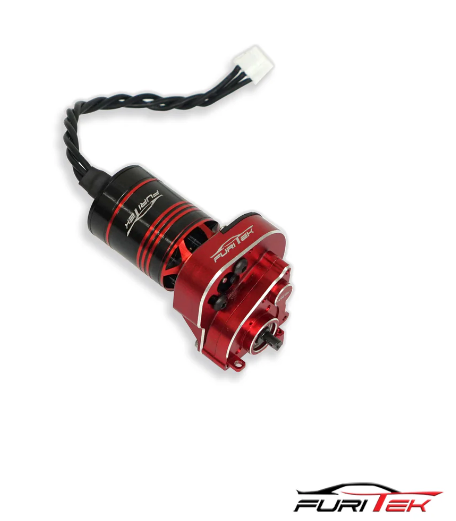

FURITEK MICRO STELLAR TRANSMISSION WITH CEDAR INRUNNER BRUSHLESS SETUP FOR SCX24

FURITEK team in the past 2 years have been designed and produced several outrunner brushless motors for mini crawlers with famous KOMODO line of motors. They together with FURITEK FOC-technology escs, have been changing the games for the mini crawlers. They are super quiet, butter smooth and amazingly powerful.

However the team is not stopping; after over 6 months of testing and designing, a new patent-pending inrunner brushless motors for mini crawlers is released. Introducing the new FURITEK inrunner CEDAR 1825 3450KV brushless motors that incorporate the awesome features above of the outrunner motors but in the form of a sealed can version making it dustproof and waterproof. We no longer have to worry about the outside of the motor needing clearance to spin anymore. It is easy to be stuck in any frame without worrying about touching wires or parts like the counterpart outrunner motors.

The new Furitek Micro Stellar comes with precision steel gears with integrated high quality ball bearings assembled inside the aluminum gear box. It is designed to fit perfectly on SCX24 crawlers.

Features:
- Special designed 12-Pole Inrunner brushless motor for most efficiency
- Waterproof design
- Dustproof design
- Small, compact, easy to be installed in tight spaces
- Stylish with aluminum case, anodized with red and black
- Super quiet, high torque, powerful and super slow speed yet tons of wheel speeds when needed
- High purity and higher temperature copper windings -lower copper losses, very good heat dissipating-maximizes efficiency.
- Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency. High ---RPM ABEC5 bearings.
- Precision balanced rotor, smoothness for best reliability, and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.
- Precision engineered for maximum energy conversion
- Precision Steel gears
- High quality ball bearings
- Precision CNC aluminum gear box
- All hardware included

Specifications:
- Motor type: Brushless Inrunner
- KV: 3450KV¬¬
- No-load current @10V: 07A
- Power: 120W
- Battery: 2-3S Lipo
- Resistance: 0.17Ohm
- Slot/Pole: 12-Pole
- Motor size: 18x25mm diameter (0.7 x 1inch)
- Weight: 20g (0.7oz)
