Atomic DRZ3 MP Chassis Kit

Recommended Electronics:

Servo: AGFRC A06CLS (low profile) Aluminum Case 7g Titanium Gear

Motor and ESC: All options on our website are compatible

The new Atomic DRZ3-MP

This new generation professional drift chassis consists of various new features and design:

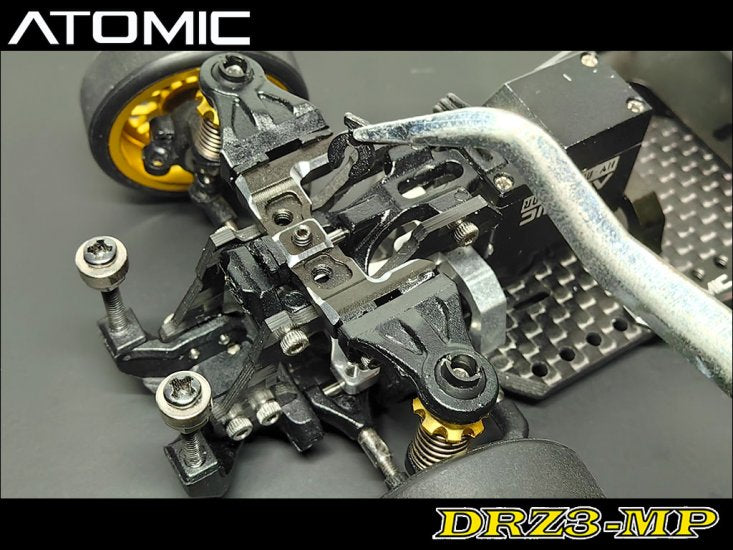

• MacPherson strut front suspension – the and damper spring holder are integrated to the front knuckle as a strut- a design which offers more space for the wheel and by extension significantly enhances maximum steering angle.

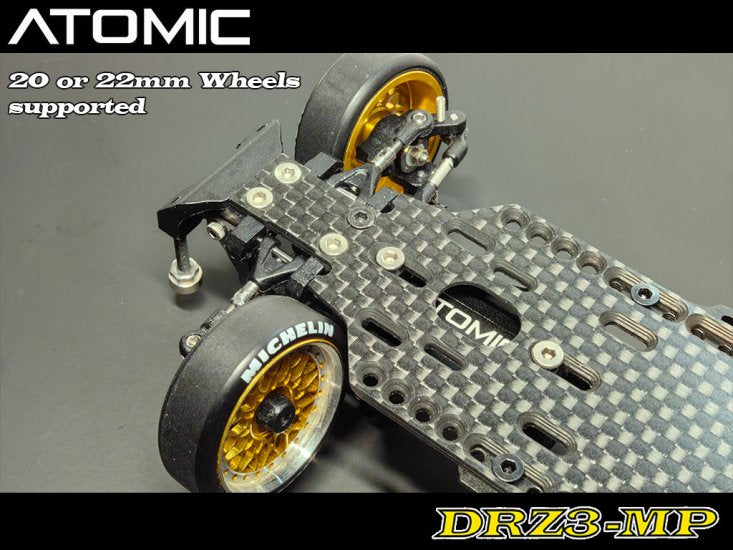

• Compatible with 1:24 and 1:28 wheels
• Wheelbase adjustable from 90 to 130mm to fit 1:28 and 1:24 car bodies.
• Quick-change front caster angle (from 2 to 16 degree)
• Ackerman can be easily adjusted by changing the position of the servo and steering crank.
• Compatible with 8 mm to 11.5mm thick servos.
• Motor position is adjustable from zero to ninety degrees (step-less)
• Rear bulkhead can be installed in reverse to allow an RR (Rear Motor-Rear Drive) configuration
• Designed to eliminate the top-deck allowing for easier, cleaner electronics installs
• Battery mount position is adjustable for quick adjustment of the car’s center of gravity.
• Brand new Extreme-Low-Friction damper shock design.
• Magnetic body mount included

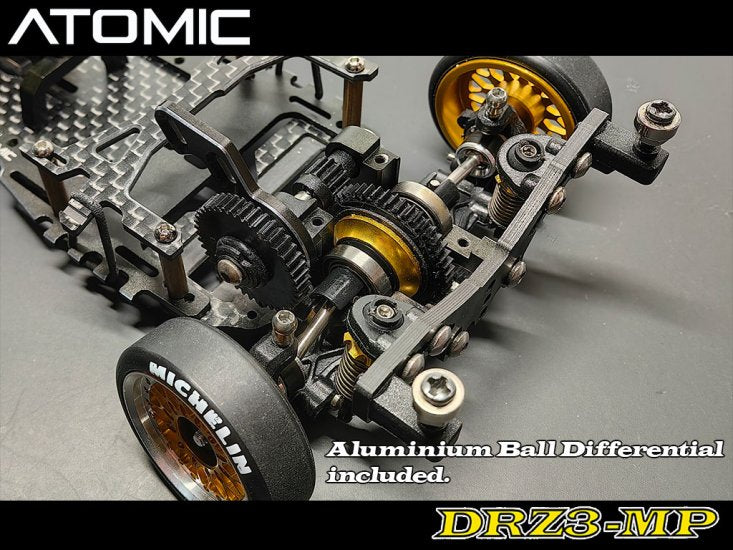

• Aluminum Ball differential included.

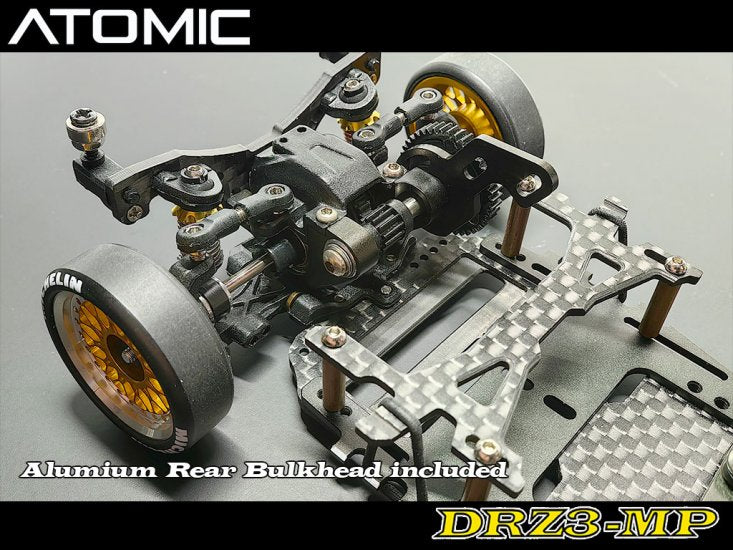

• Aluminum Rear Bulkhead Included
• Aluminum Front upper arm Mount Included

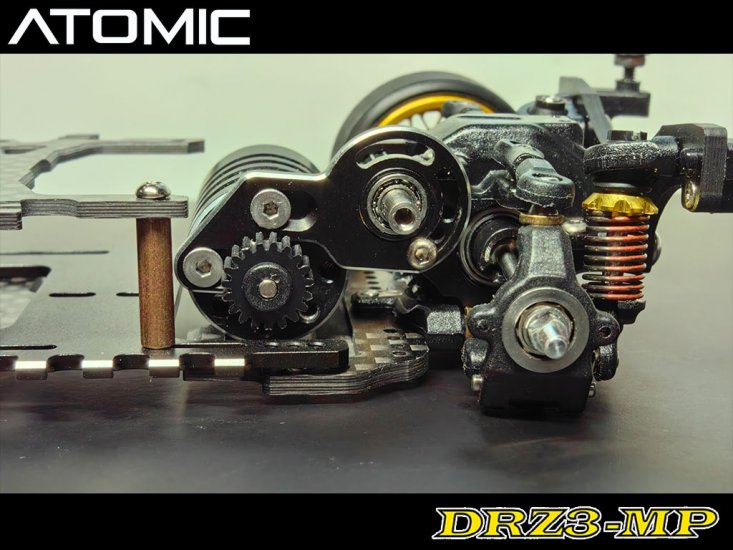

• Aluminum Motor Mount Included
• Optional Direct Drive Steering Crank will be available after launch
