Surpass Rocket ESC sensored brushless + program card

Back in stock!

Great pairing with the motor options:

https://rcportal.com.au/products/rocket-rc-1525-mini-sensored-motor

ROCKET-RC 30A Brushless ESC with LED Programing Card Combo MINI 28 Pro Sensored 2S LiPo BEC 3A 6V/7.4V Electric Speed Controller for RC 1/28 1/27 RC Car Upgrades
-ESC
Features:
Bulid in adjustable BEC, 3A 6V/7.4V, ideal for 1/28 and 1/27 scale surface applications running on 2s Lipo setups.
Strong resistant current capability and excellent heat dissipation, easily programmed.
High current capability of 30A continuous current and 80A peak current ensures a stable driving.

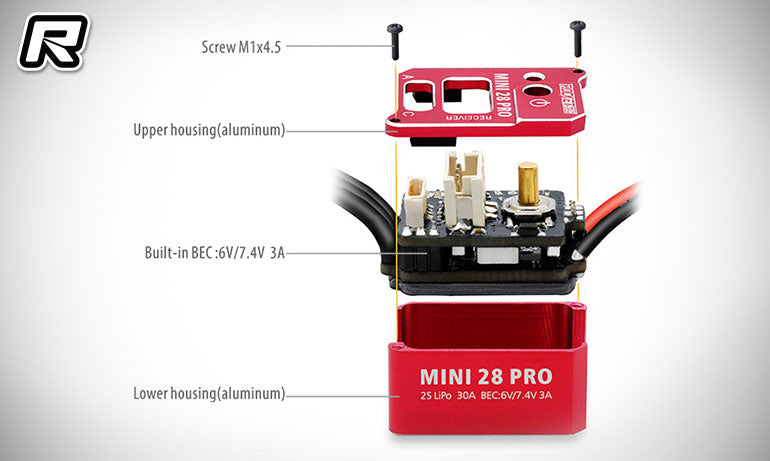

CNC machined, built with the high quality components to ensure high efficiency operation.
The ESC can be programmed by using a programming card that can be purchased separately.

Descriptions:
This 30A brushless ESC is designed for 1/28,1/27 scale Mini RC car with high-frequency drive system and low-resistance field effect tube. It features small size and extremely lightweight, multi setting, full metal CNC housing for excellent heat dissipation, excellent acceleration to ensure high operation and provide a stable driving.

Specifications:
Continue current: 30A
Burst current: 80A
Battery: 2S Li-Po
BEC output: 3A 6V/7.4V
Suit for: 1/28 & 1/27 RC car
Programmable: Yes
Size(LxWxH): 21(L)x13.8(W)x11(H)mm
Weight: 7.6g(including wires)

-Programing Card
Features:
1.Suit for Supersonic 45/60/80/120A ESC.
2.This programing card is easy to use.
3.It can program brake force, reverse force, low voltage protection, start mode and neutral range.

Description:
Simple operation, suitable for a variety of esc, is a good choice for RC fans.

Specifications:
Use: Vehicles & Remote Control Toys
For Vehicle Type: Cars
Remote Control Peripherals/Devices: LED Program Card
Only Apply to: Supersonic Rocket V2 Motor
Material: plastic
1:Low Voltage Cut-Off: The function is mainly to prevent the lithium
battery pack from over discharging. When using lithium battery pack,
please set the suitable value for low-voltage protection as your like.
WARNING: Never use the default value “Non-protection” for lithium
battery! 3.1V Slow、2.9V Slow、2.7V Slow、Disable、3.4V Slow、3.1V
Stop、2.9V Stop、2.7V Stop、3.4V Stop(default value 3.1V Slow).
2:3 start modes (Also called “Punch”) Level3、Level1、Level6、Level2、 Level4、Level5、(default value Level3)
3：Maximum brake force: 50%、25%、75%、100%、Disable(default
value 50%)
4:Maximum reverse force: 25%、50%、75%、100%(default value 25%)
5:Neutral range: 9%(narrow),6%(Normal),12%(Wide) (default value 9%)
6:Motor Overheat Protection：120℃Stop 、135℃ Stop、150℃
Stop、120℃ Slow、135℃ Slow、150℃ Slow、Disable(default value
120℃ Stop)
7:ESC Overheat Protection：105℃ Stop、95℃ Stop、105℃ Stop、 95℃ Stop、Disable(default 105℃ Stop)
8:Running Mode：Fwd/Rev/Br、Fwd /Br、Fwd/Rev(default value
Fwd/Rev/Br)(Fwd=Forward、Brk=Brake、Rev=Reverse)
9:Drag Brake Force：0%、5%、10%、20%、30%(default value 0%).
Size:70*43*13mm
Weight:24g

Programme Card Method:
1. Connect BEC wires with the program car then turn on the ESC.
2. The programme card display ITEM form 1 to 15 corresponding VALUE.
3. Please press the Key “IETM” to select different programs .
4. Please press the Key “VALUE” to select different value of the current
program.
5. Please press the Key “OK” to confirm above selections。 6. Please press the Key “RESET” to reset the factory setting.

Package included:
1 x Brushless ESC
1 x LED Programing Card
